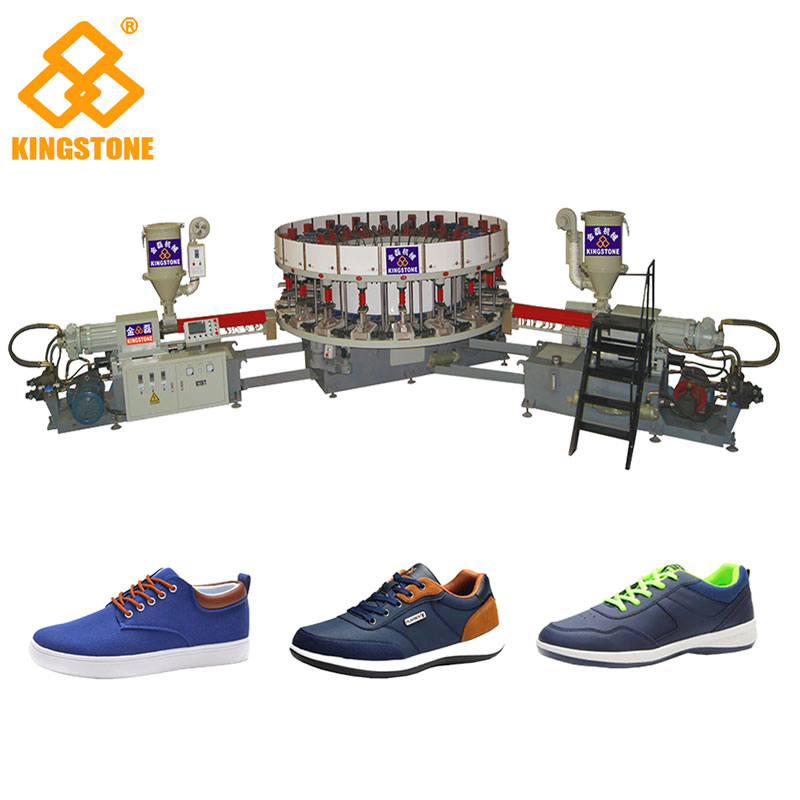

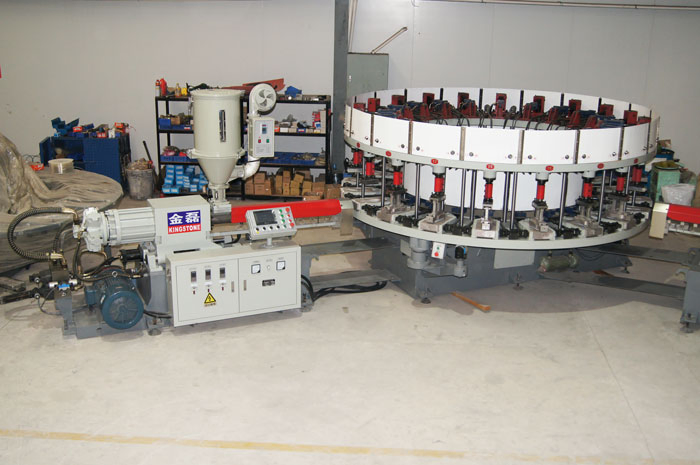

Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
1 / 5
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material
Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material

Automatic Direct Injection Machine for Making Sport Shoe Canvas Shoes and School Shoes Safety Shoes in PVC TPR TR Material

Customization: Available
Condition: New
Certification: GS, RoHS, CE, ISO9001
Send Inquiry

Product Description

📊 BASIC INFORMATION
Model NO.
JL-258-2C
Power Supply
Electric
Applicable Material
Plastic (PVC, TPR, TR)
Function
Making Sole / Sports Shoes
Workstations
20 Stations
Power
52.5kw
Machine Weight
12.5 Tons
Workers Need
1-2 People
Warranty
2 Years
HS Code
8477101090
💡 PRODUCT DESCRIPTION

Product Application: Suitable for various kinds of shoes such as canvas shoes and sport shoes.

Raw Material: Compatible with all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC, TPR, and TR.

⚙️ MACHINE FEATURES
  • All oil circuits are controlled by proportion pressure to coordinate with the computer digital feeding system.
  • Hydraulic compare with vertical straight locking device for perfect tightness with the least burr, reducing manufacture cost.
  • Coordinated with electric and hydraulic structure and unique braking device for fast rotary turn and precise setting.
  • Special design of mechanical buffer to coordinate with hydraulic multi-control, avoiding hits between injection gate and mould while extending mold service life.
📐 TECHNICAL SPECIFICATIONS
  • Max. injection volume (cm3)
    • Mould-clamping Unit
    Work station12, 16, 20
    Shoe last trip (MM)60
    Shoe last height (MM)210-260
    Mould dimension (MM)340*80*60
    Injection Unit
    Screw diameter (MM)70/75, 65/60
    650-1000
    Injection pressure (mpa)5.0
    Electricity Consumption
    Total power (KW)43
    Power consumption per hour (Kw/h)25-30
    📸 MACHINE VISUALS

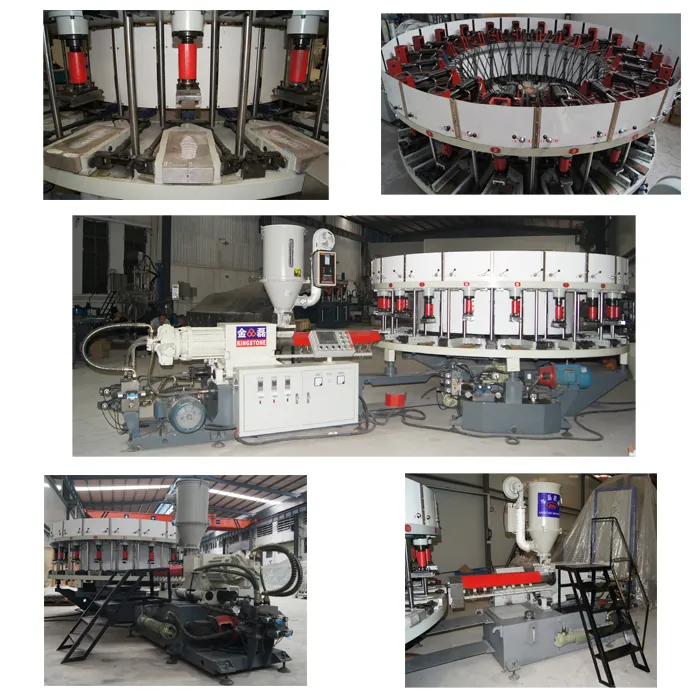

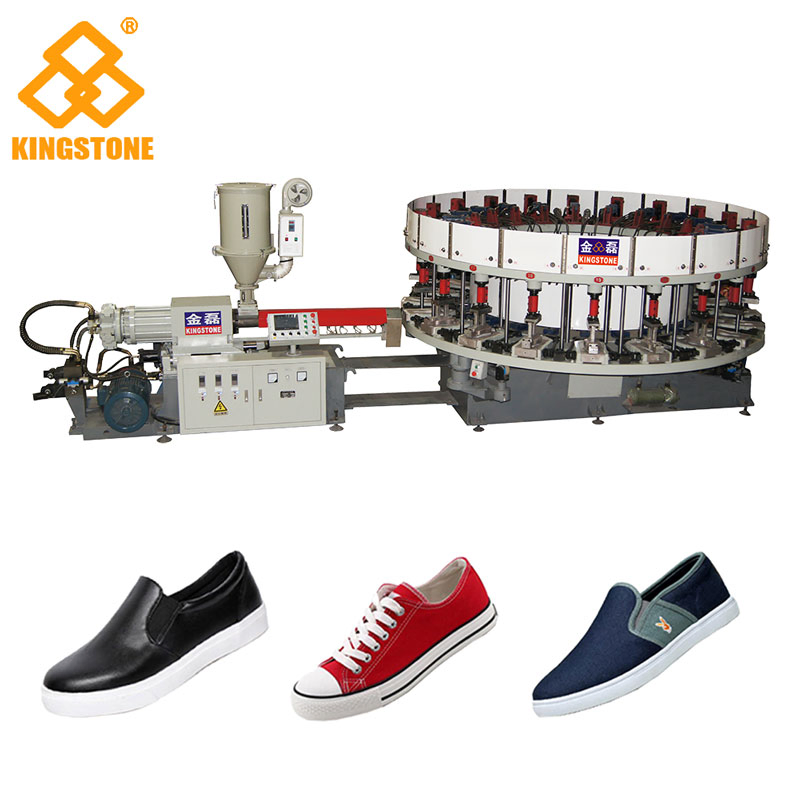

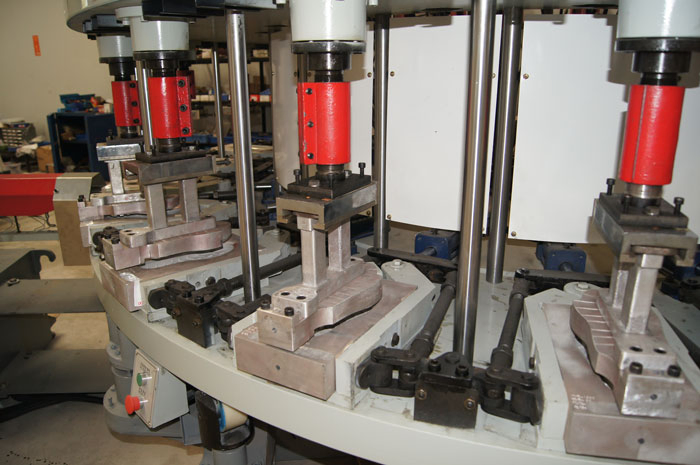

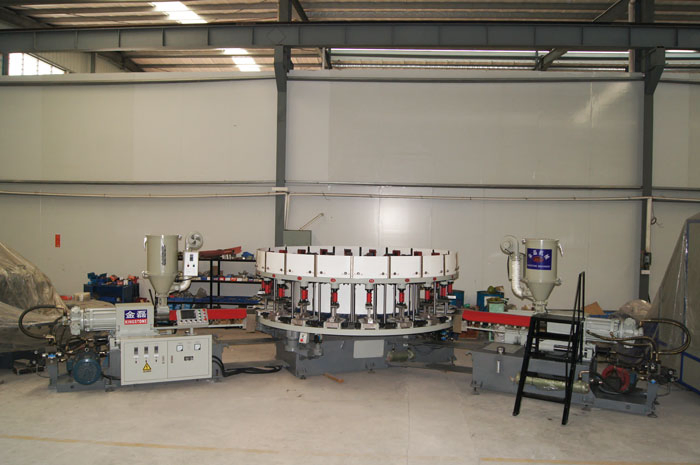

    Machine Picture

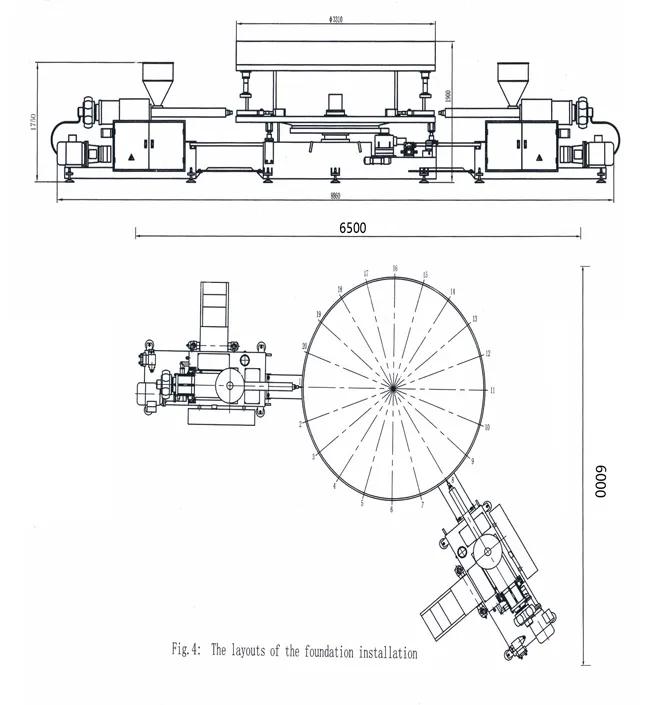

    Machine Drawing
    👟 FINISHED PRODUCTS
    Finished Product 1
    Finished Product 2
    📦 PACKAGE & SHIPPING

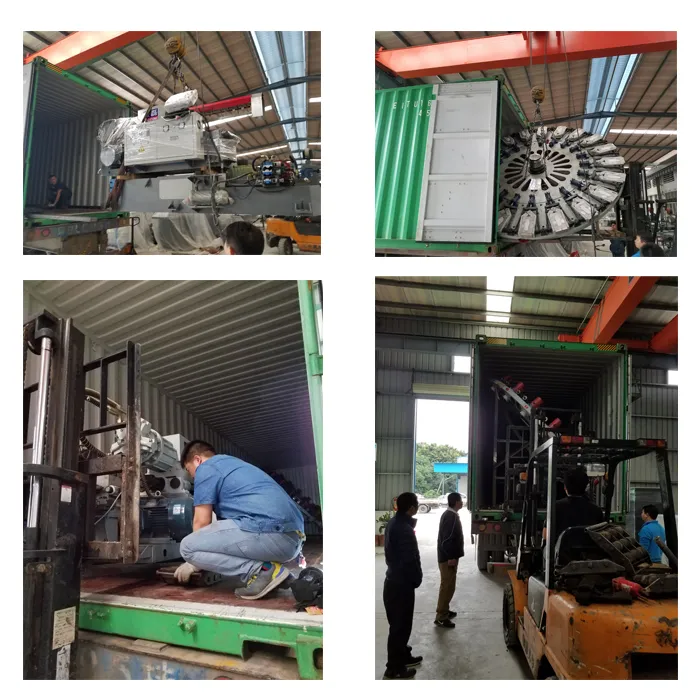

    Standard export package. The machine requires a 40HQ container for transport.

    Shipping Container
    ❓ FREQUENTLY ASKED QUESTIONS
    1. What materials can this machine process?
    The JL-258-2C is designed for all kinds of thermoplastic raw materials, including foaming or non-foaming PVC, TPR, and TR.
    2. How many workstations are available on this model?
    This machine offers flexible configurations with 12, 16, or 20 workstations to meet different production needs.
    3. What is the warranty period for the machine?
    We provide a 2-year warranty, which is one of the longest coverage periods available for this type of machinery.
    4. How many workers are required to operate the machine?
    Thanks to the automated computer control system, only 1 to 2 people are needed to operate the entire unit efficiently.
    5. What is the power consumption for this 20-station machine?
    The total power is 43KW, with an average hourly power consumption of approximately 25-30 Kw/h.
    6. What type of footwear can be produced?
    It is ideal for producing canvas shoes, sports shoes, school shoes, and safety shoes via direct injection.
