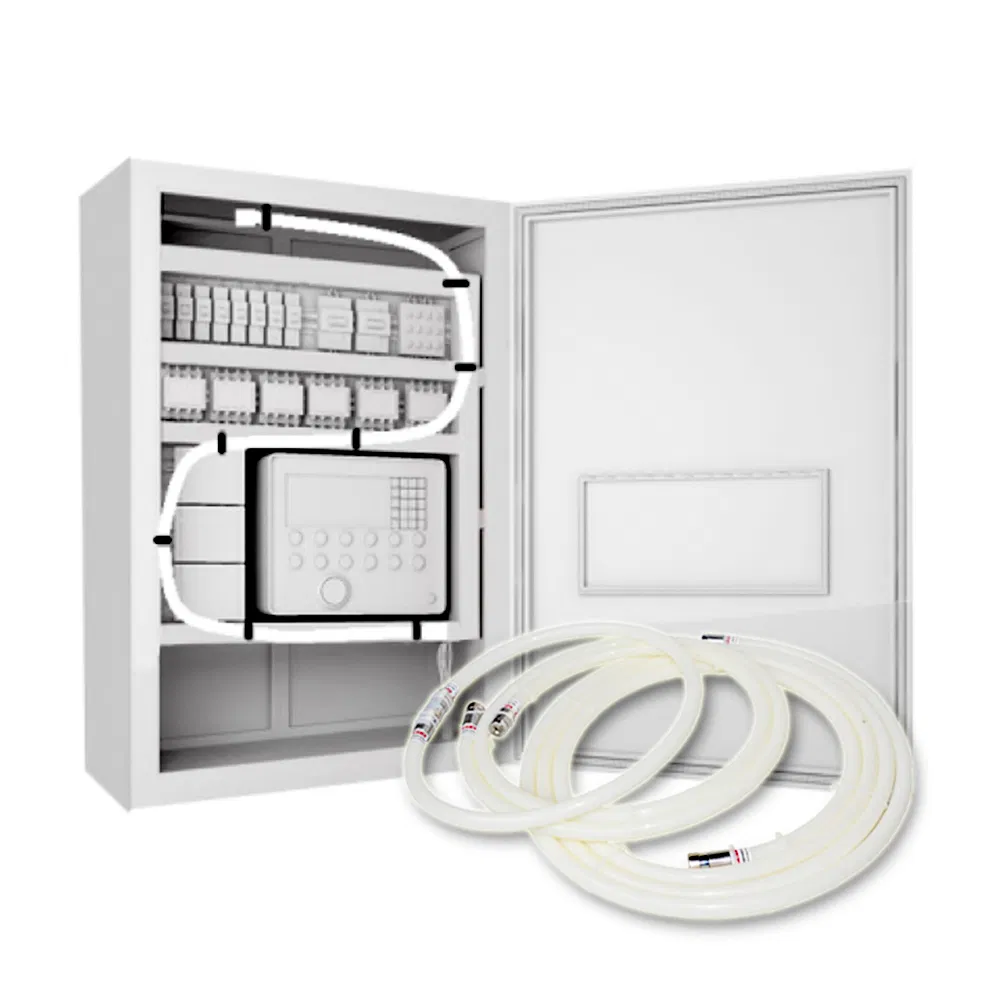

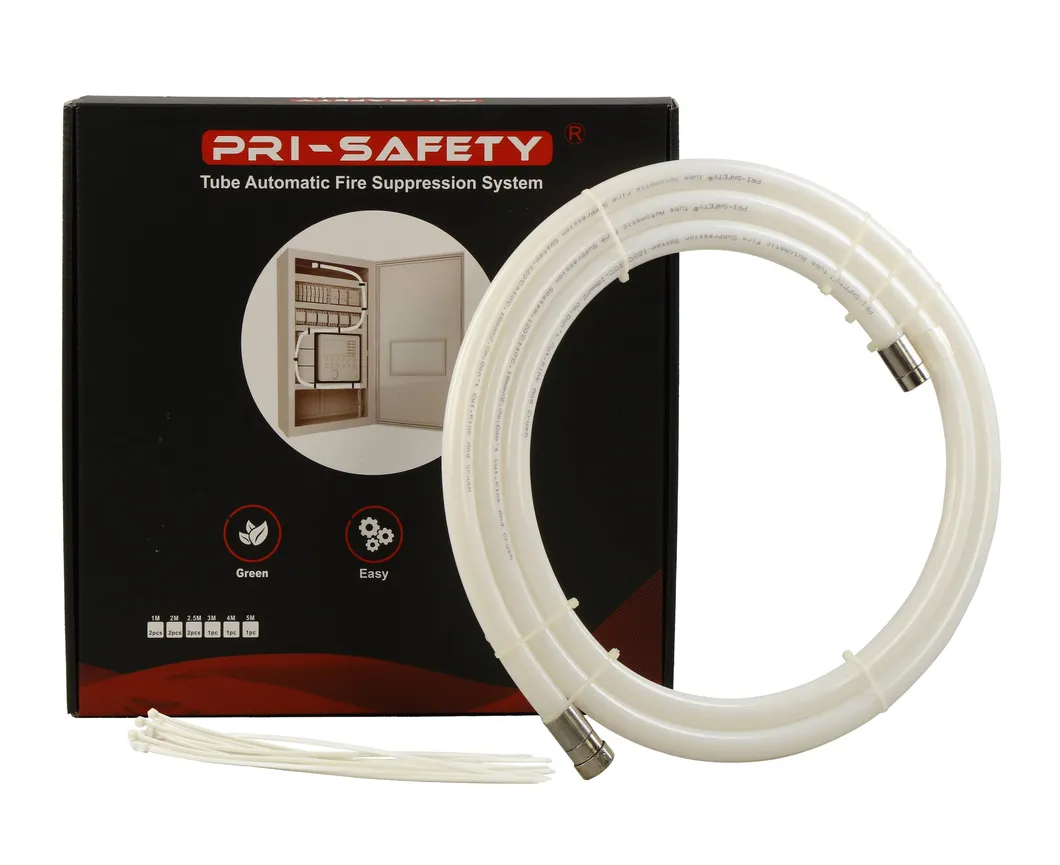

This innovative self-activating fire extinguisher is specially designed for electrical panels, control cabinets, battery boxes, and other enclosed compartments. It integrates both the storage container and discharge system in a single compact unit, providing fast, automatic fire detection and suppression directly at the fire source.
The tube acts as a fire sensor and discharge line at the same time, filled with clean extinguishing agent (Novec1230 or FM200). When heat causes the tube to rupture at the hottest point, it releases the agent directly onto the flames, cooling and suppressing the fire before it spreads. The system operates without any external power source and offers up to 5 years of reliable protection.

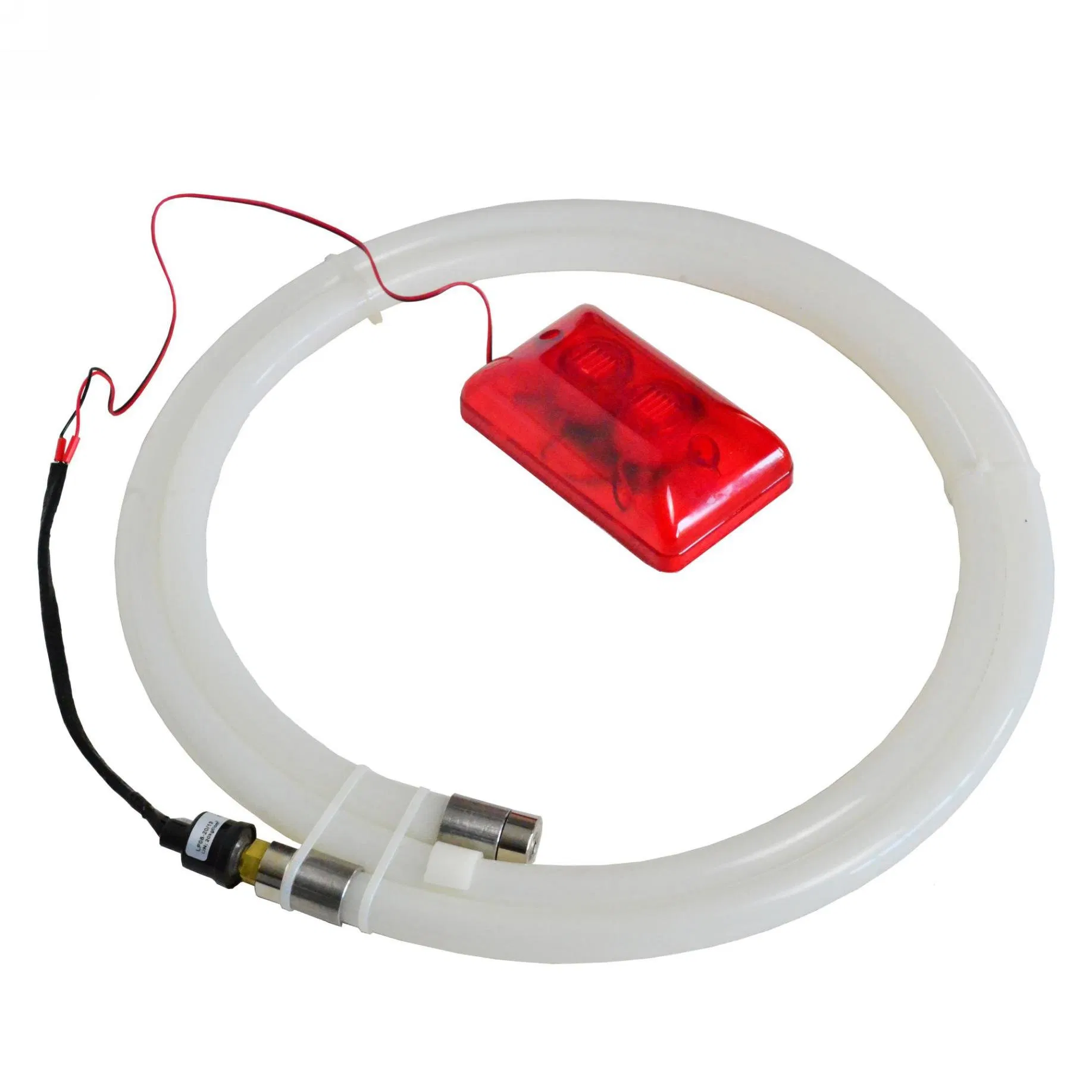

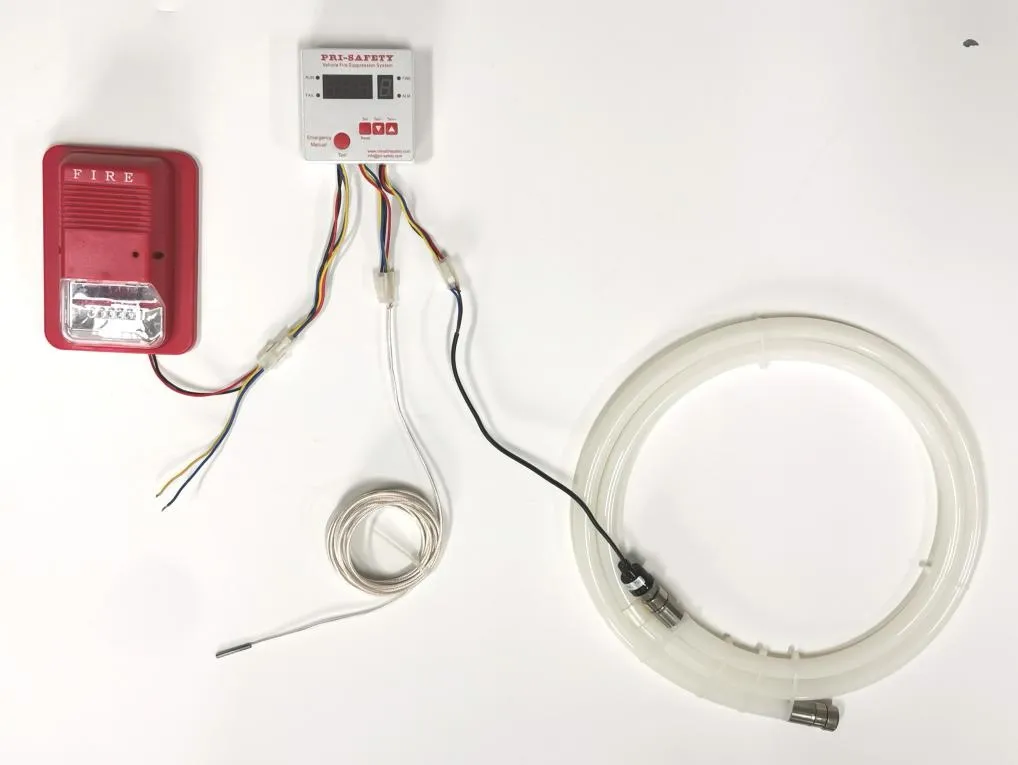

Alarm Activation: Automatically triggers an alarm when fire is detected. Optional temperature sensors and fire alarm modules provide enhanced safety.
Remote Notification: The control panel shows real-time temperature monitoring and can send fire alerts via GPS tracking systems.
| Code | TFS-0.5 | TFS-01 | TFS-02 | TFS-03 | TFS-04 | TFS-05 |
|---|---|---|---|---|---|---|
| Length x Dia | 0.5mx18mm | 1mx18mm | 2mx18mm | 3mx18mm | 4mx18mm | 2mx18mm |
| Capacity | 100g | 200g | 400g | 600g | 800g | 1000g |
| Protection Space | 0.1~0.12m³ | 0.2~0.25m³ | 0.4~0.50m³ | 0.6~0.75m³ | 0.8~1.0m³ | 1.0~1.25m³ |
| Agent Type | FM200 (HFC-227ea) / Novec1230 (FK5112) | |||||
| Shelf Life | 5 Years | |||||

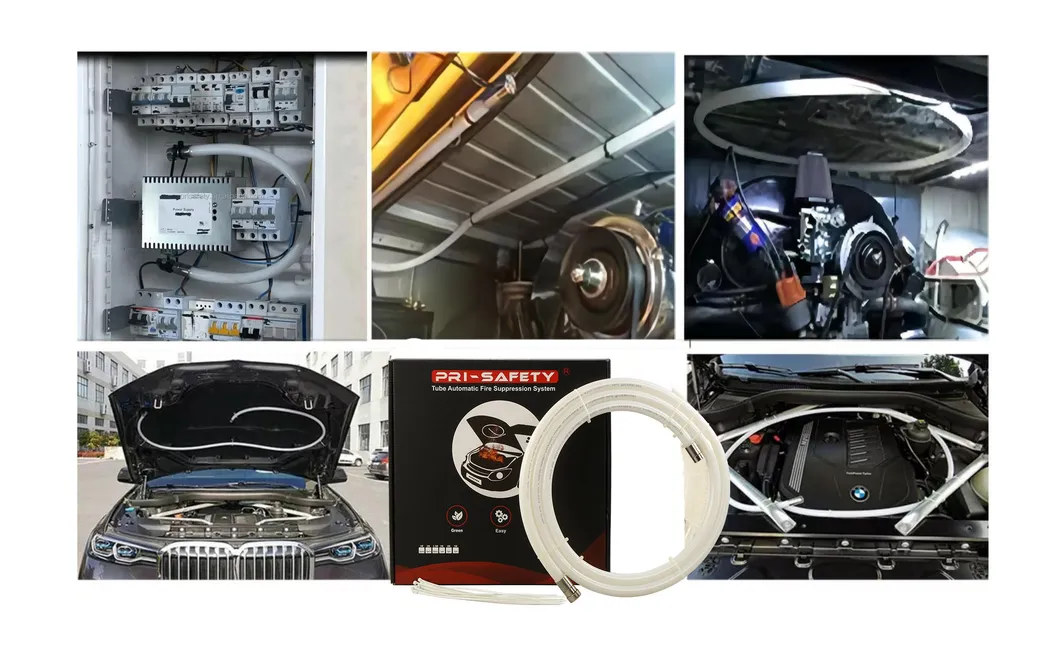

• Battery boxes and server racks
• Electrical cabinets and control panels
• Vehicles (Trucks, vans, sports cars, luxury cars)
• Marine applications (Boats and yachts)

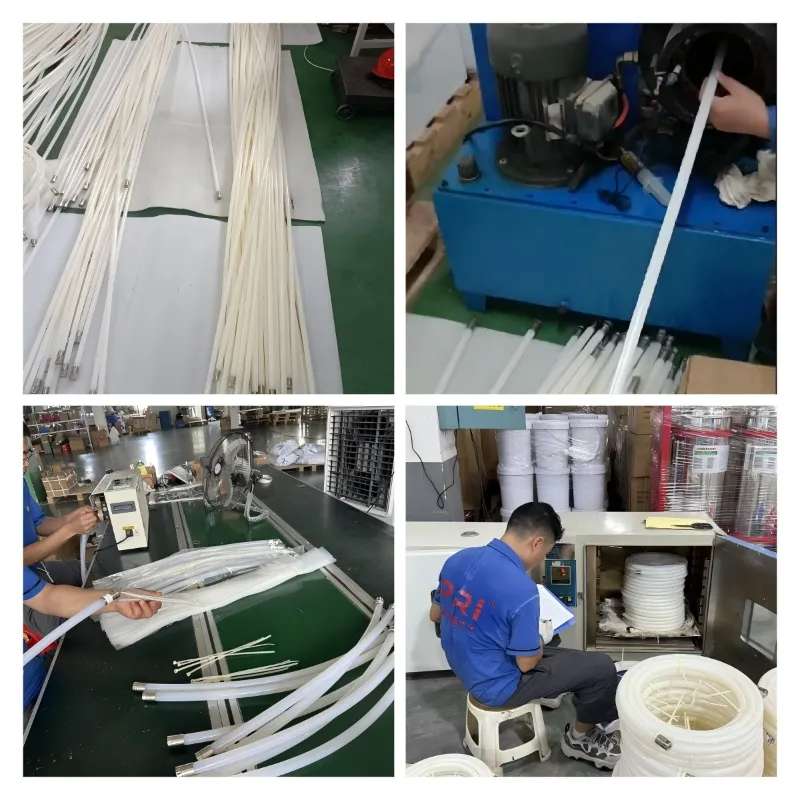

Focusing on Automatic Fire Suppression Systems since 2005, all products are manufactured under strict quality tests (ISO9001:2015, TUV CE0036, ECE R107) to ensure consistent performance. Systems are used across mining, agriculture, petrochemical, and transportation industries.
A: The heat-sensitive tube acts as both a sensor and a discharge line. When it detects fire, it ruptures at the hottest point and releases the extinguishing agent directly onto the source.
A: No, the system is fully self-activating and operates without any external power support.
A: It is virtually maintenance-free and designed to provide reliable protection for up to 5 years.
A: Yes, it uses clean agents like FM200 or Novec1230, which leave no residue and are safe for sensitive electrical equipment.
A: It is effective for Class A, B, C, D, and E fires, making it versatile for many industrial and automotive uses.
A: Yes, with optional accessories like GPS tracking and alarm modules, you can receive real-time temperature updates and fire notifications.
