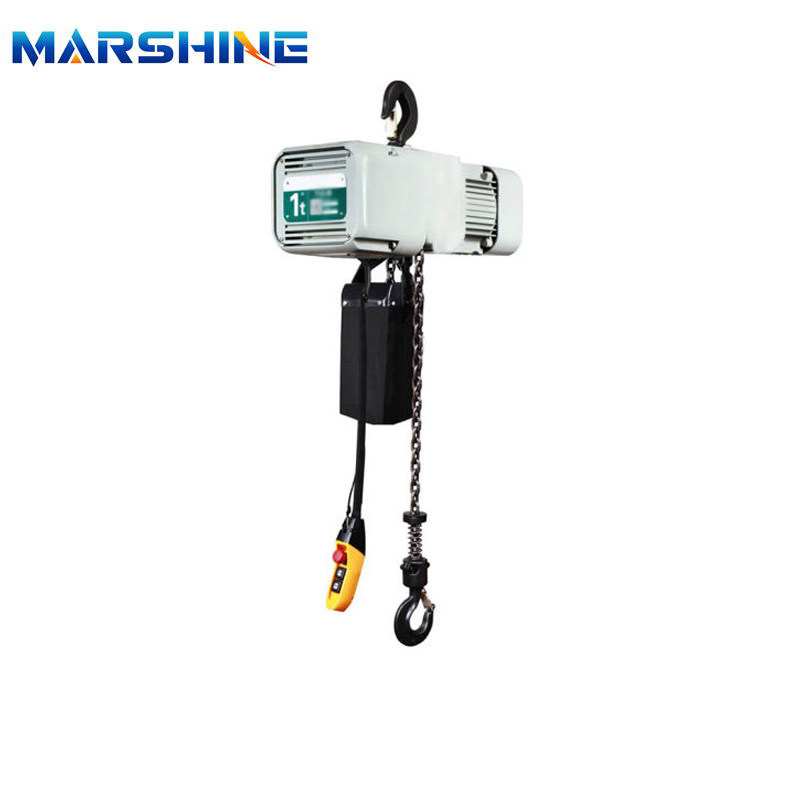

Electric Chain Hoist with Electric Trolley is a high-performance lifting solution designed for flexibility and reliability in confined workspaces. It features a lightweight design, low failure rate, and allows for four-way movement (up, down, left, right) along I-beams.
Cast aluminum housing provides high impact resistance and superior heat dissipation. With an IP55 protection rating, it is built for durability in demanding environments.
Equipped with international G80 grade (or customizable G100) carbon black chains, offering excellent anti-corrosion and wear resistance properties.
High-quality lift switch with an emergency stop button. The handle is designed for comfort and simple operation at various control voltages.
| Model (TY1 Single Speed) | 0.5-01S | 01-01S | 02-01S | 02-02S | 03-01S | 05-02S |
| Capacity (t) | 0.5t | 1t | 2t | 2t | 3t | 5t |
| Lifting Speed (m/min) | 7.2 | 6.6 | 6.6 | 3.3 | 5.4 | 2.7 |
| Motor Power (KW) | 0.8 | 1.5 | 3.0 | 1.5 | 3.0 | 3.0 |
| Chain Specification | Φ6.3 | Φ7.1 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 |
| Net Weight (kg) | 47 | 61 | 115 | 73 | 122 | 151 |
