Introducing the cutting-edge Drone Detection Radar: A formidable solution to counter drone threats and effectively halt unauthorized drone invasions. Elevate your security measures with our advanced radar technology.

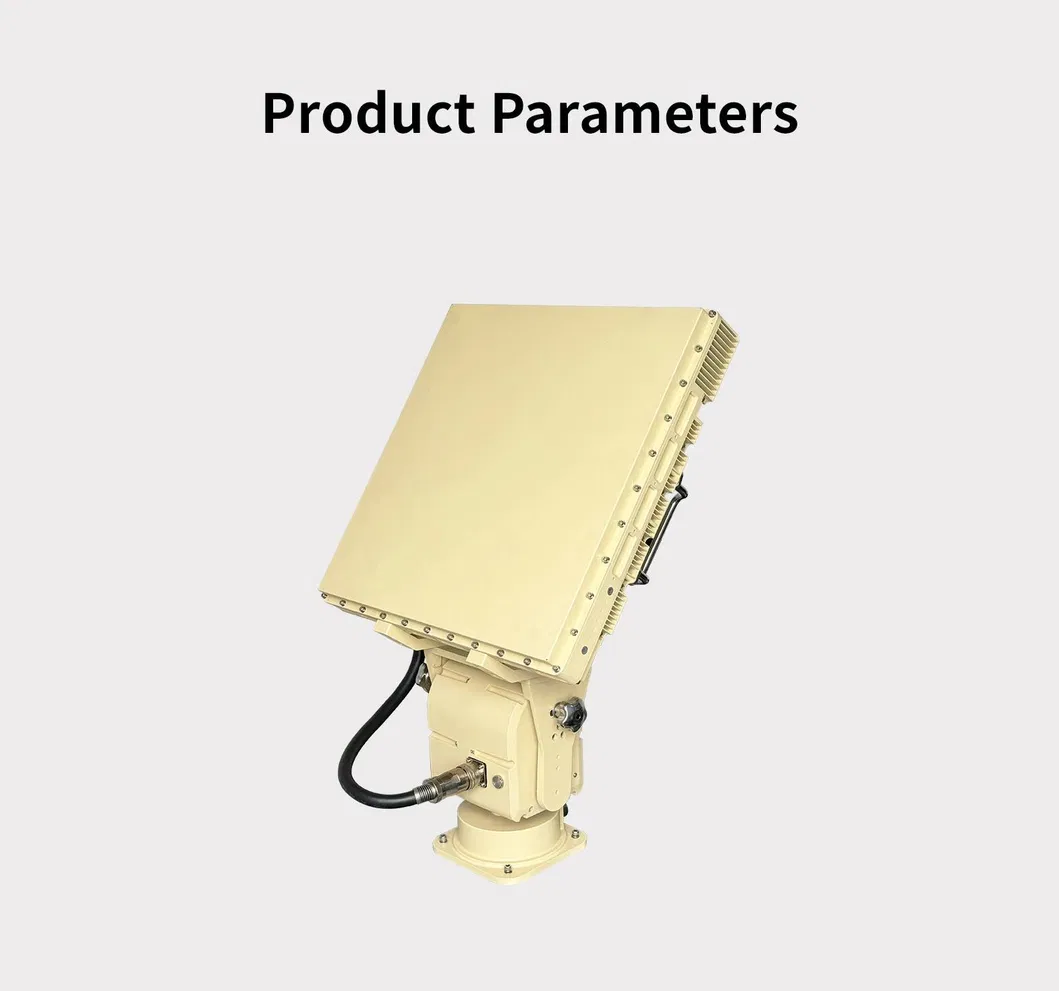

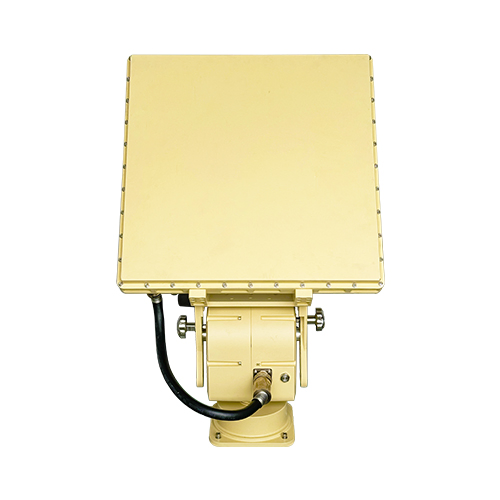

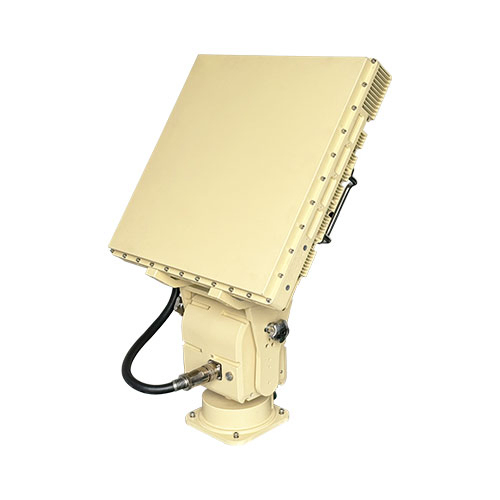

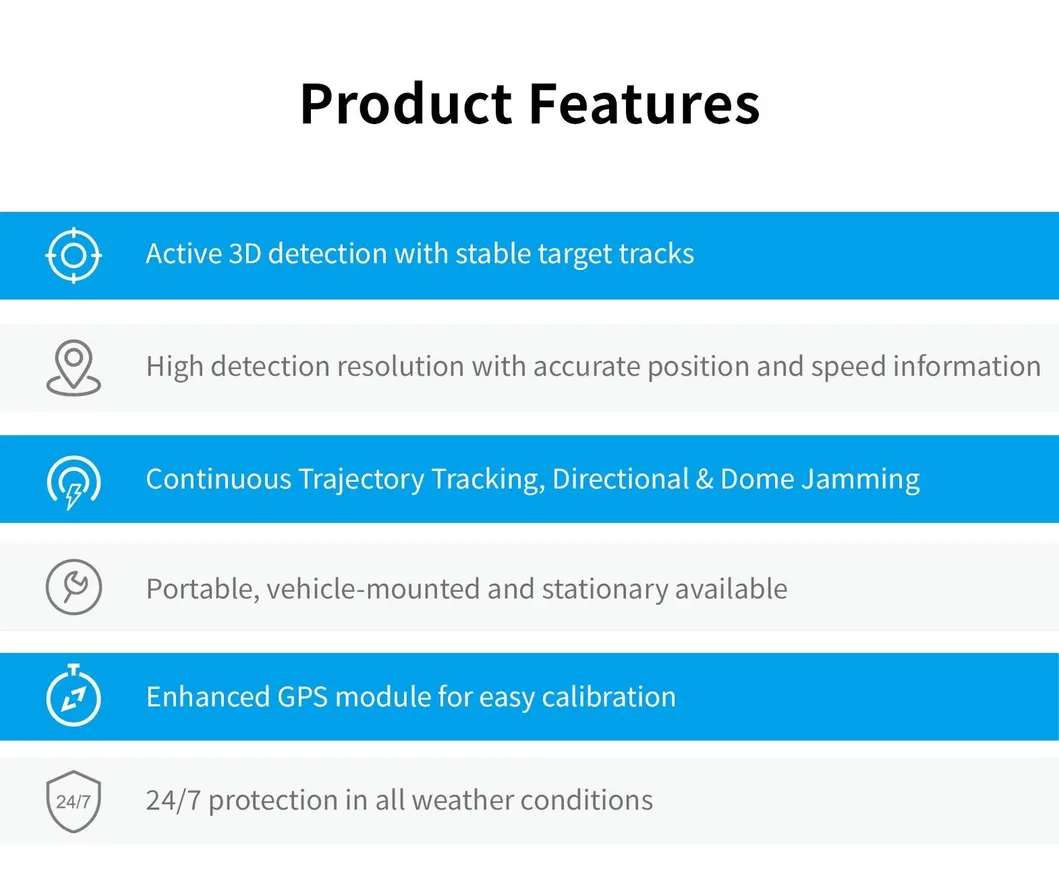

Meet the TXPD5000, the pinnacle of innovation in drone detection radar technology. This 3D active radar offers an exceptional balance of cost-efficiency and superior performance, ensuring relentless 360° monitoring of mini-UAVs up to an impressive 5 km range. Its advanced capabilities allow it to accurately identify and track up to 50 targets concurrently, providing precise data on distance, azimuth, height, and speed. Ideal for safeguarding national confidential facilities, airports, critical infrastructures, oil refineries, and public events, this radar is your premier choice for anti-UAV applications.
| Model | TXPD5000 |
| Radar Type | Frequency Modulated Continuous Wave (FMCW) |
| Frequency Band | K Band (24GHz, FCC & ETSI unlicensed) |
| Transmission Power | 45dBm |
| Bandwidth | 100MHz |
| Scan Type | Mechanical Scanning |
| Scan Speed | 10rpm (60°/s) |
| Detection Range | 5KM (3.1mile) RCS=0.01 m² |
| Range Resolution | ±1.5m (4.9ft) |
| Field of View (Horizontal) | 360° |
| Field of View (Vertical) | 60° |
| Simultaneous Tracking | 100 Targets |
| Power Consumption | ≤400W |
| IP Rating | IP65 |
| Operating Temperature | -25 ~ 60ºC / -40 ~ 60ºC optional |
| Dimensions | 780*500*350 mm |
| Weight | ≤25kg (55lb) |
| Interface | RJ45, RS485, WiFi |

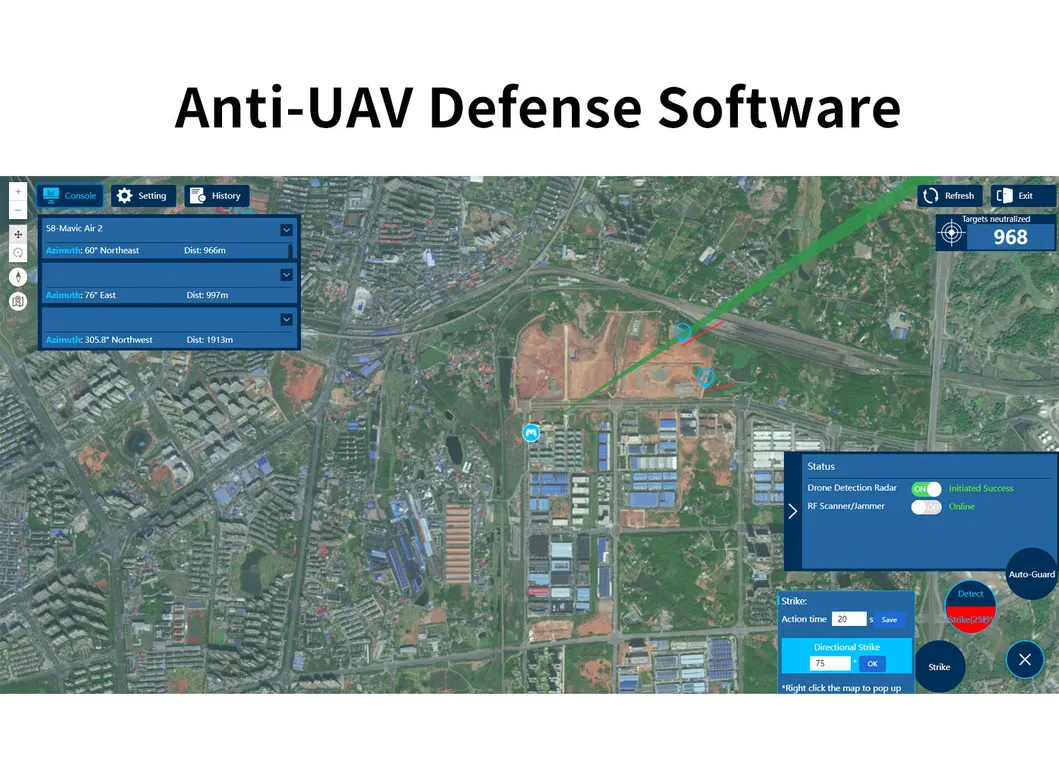

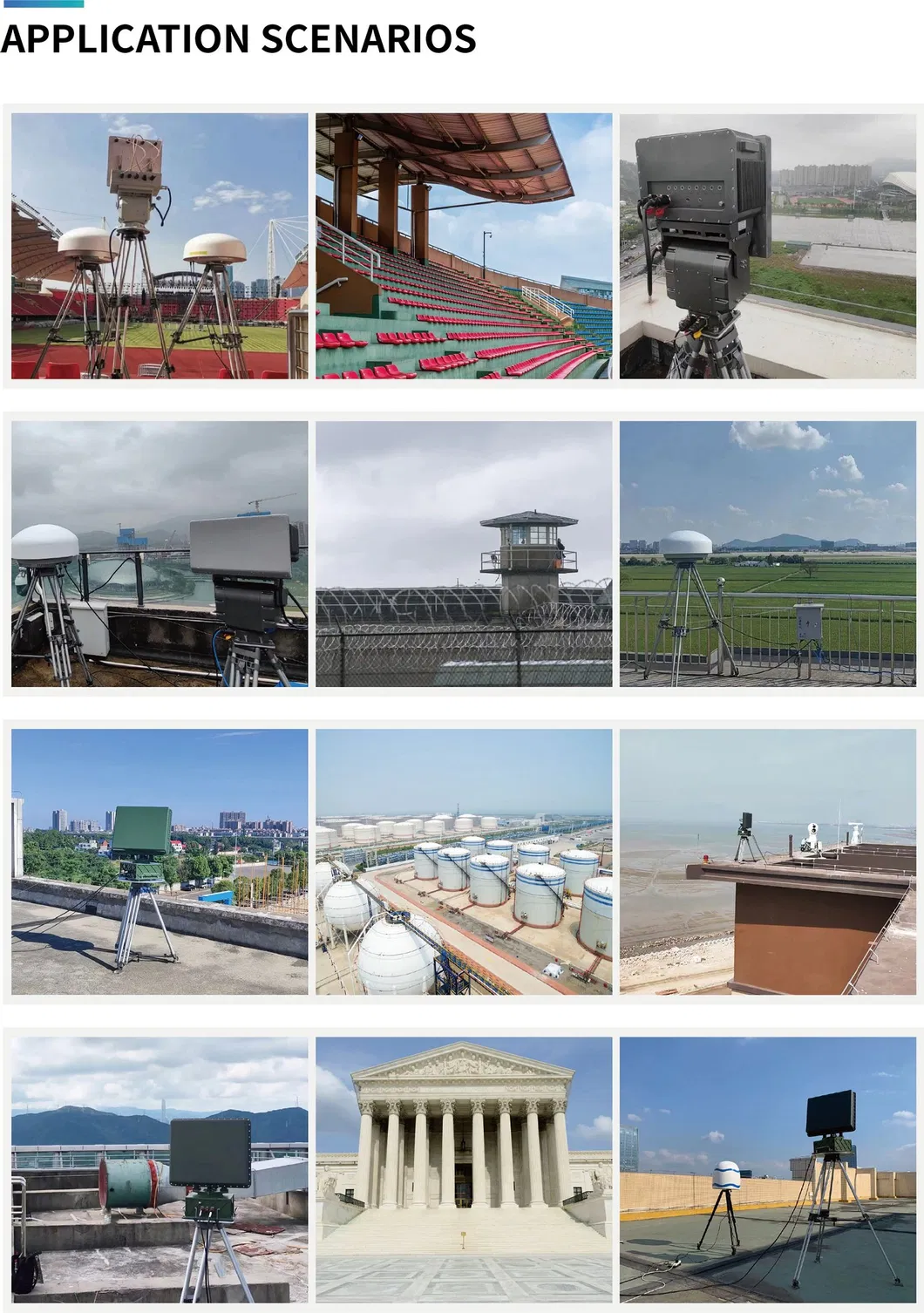

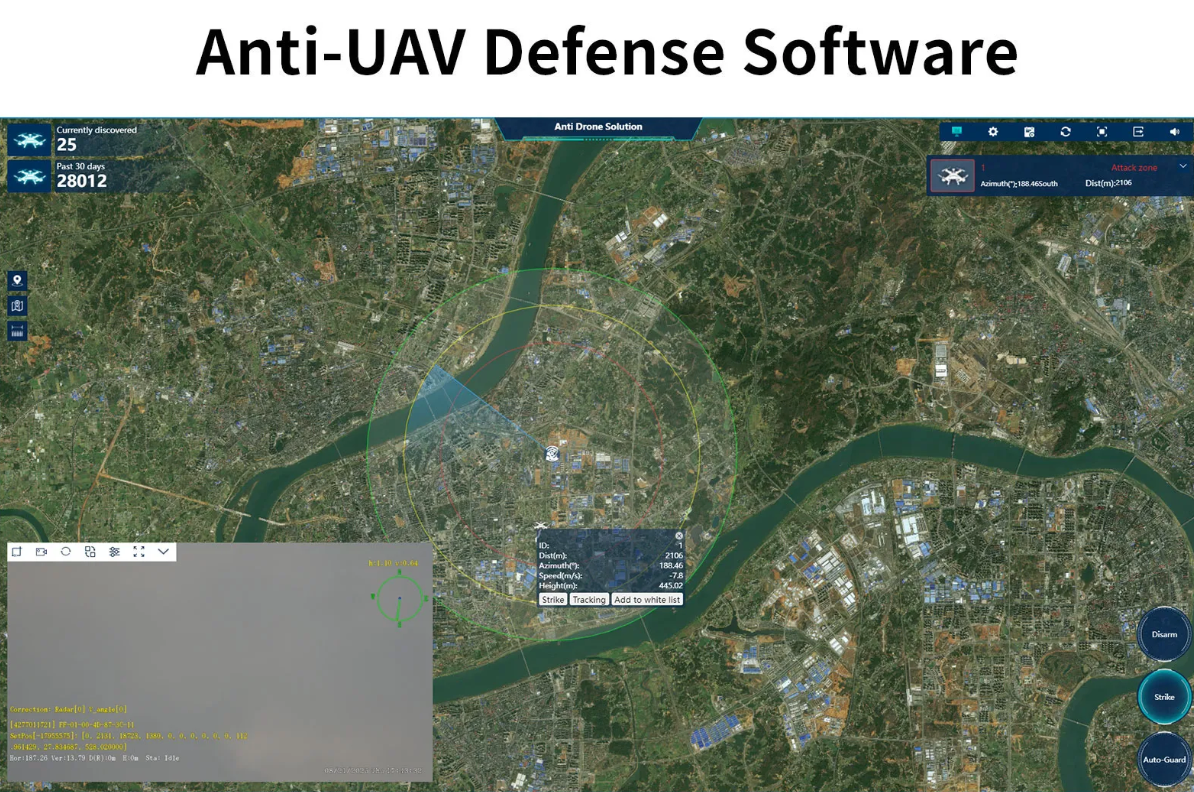

Our comprehensive Anti-UAV Defense System represents the next generation in unmanned aerial threat management. Featuring a robust integration of radar or RF detection units, EO tracking modules, and sophisticated jamming technologies, this system delivers a multi-functional approach to target detection, tracking, recognition, command, and control over jamming operations. Tailor the system to your specific security needs with flexible deployment options—choose from fixed installations for high-security sites, vehicle-mounted systems for efficient patrol operations, or portable units for dynamic, temporary prevention and control at key conferences, sports events, concerts, and beyond.
?
Frequently Asked Questions
What is the maximum detection range of the TXPD5000 radar?
The TXPD5000 can detect mini-UAVs (with RCS=0.01 m²) at a range of up to 5 kilometers (3.1 miles).
How many targets can the system track at the same time?
The system is capable of simultaneously tracking up to 100 targets, providing real-time data on their distance, speed, and position.
Is the radar suitable for outdoor use in harsh weather?
Yes, the radar unit has an IP65 rating and an operating temperature range from -25°C to 60°C (with a -40°C option), making it highly durable for various environments.
What frequency band does the radar operate on?
It operates on the K Band (24GHz), which is FCC and ETSI unlicensed, ensuring wide compatibility and legal operation.
Can this radar be integrated with other defense modules?
Absolutely. It is designed to integrate seamlessly with EO tracking modules and jamming technologies for a complete Anti-UAV Defense System (AUDS).
What are the deployment options for this system?
The system supports flexible deployment, including fixed installations, vehicle-mounted setups for mobile patrols, or portable units for temporary events.
