Xingx Popular Used Light Steel Structure House/Warehouse/Workshop/Sports Center/Cold Storage

Customization:	Available
After-sales Service:	1~10 Years
Temperature:	-60c~10c

Send Inquiry

Product Description

📦 Basic Specification

Model NO.

XXCOLD

Refrigerant

Freon

Structure

Assembled

Usage

Food, Medicine, Fruit, Vegetable

Certification

UR, ISO, CE, CCC, FM etc

Power Supply

220~240V/1p/50Hz, 380~420V/1p/50

Compressor

Bitzer, Copeland, Fusheng, Hanbell

Panel Thickness

50/75/100/120/150/200 mm PU/PIR

Capacity

10~100m3

🏗️ Product Overview

Popular Used Light Steel Structure House/Warehouse/Workshop/Sports Center/Cold Storage

The company is an industry leading Cold chain equipment manufacturer and comprehensive service provider, focusing on R&D, production, and sales of refrigeration equipment for commercial refrigeration, commercial kitchen, household, and medical applications. We provide cold storage engineering construction services and supporting equipment with solid independent innovation strength.

📊 Cold Room Parameters

Category	Temperature	Purpose	Plate Thickness
Keeping-fresh	5ºC~-5ºC	Fruit, vegetable, flower, egg	50mm, 75mm
Refrigerator	-10ºC~-20ºC	Frozen meat, seafood, ice-cream	100mm, 120mm, 150mm
Freezing	-20ºC~-35ºC	Fresh fish, meat, rice products	150mm, 180mm, 200mm
Non-standard	10ºC~-60ºC	Chemical, Auto, Metallurgy	75mm - 200mm

⚙️ Technical Details

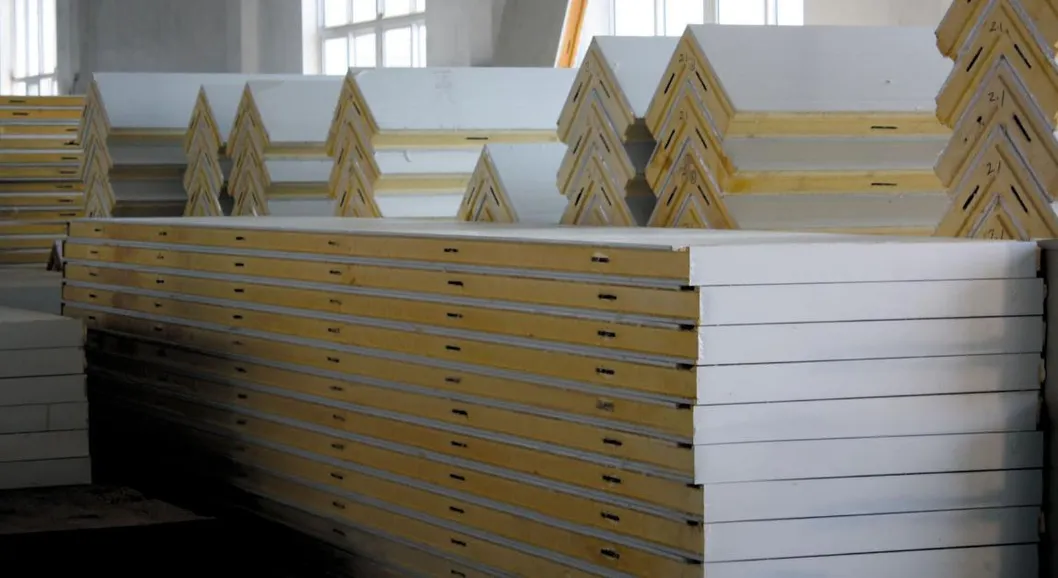

❄️ Cold Storage Panel

📍 Thickness: 50mm - 200mm
📍 Material: Color steel, Stainless steel, Checkered aluminum
📍 Density: 40±2kg/m³
📍 Advantage: Excellent heat insulation and safety

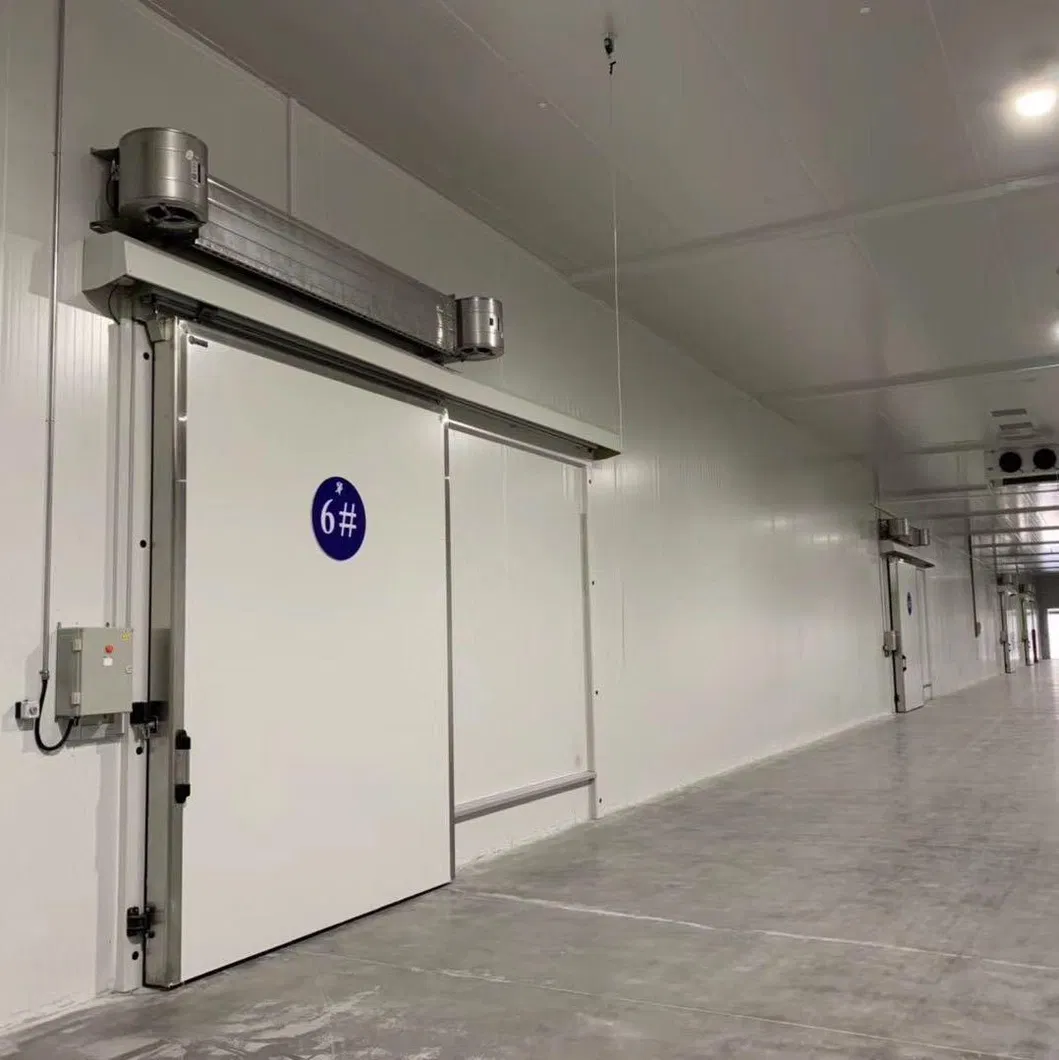

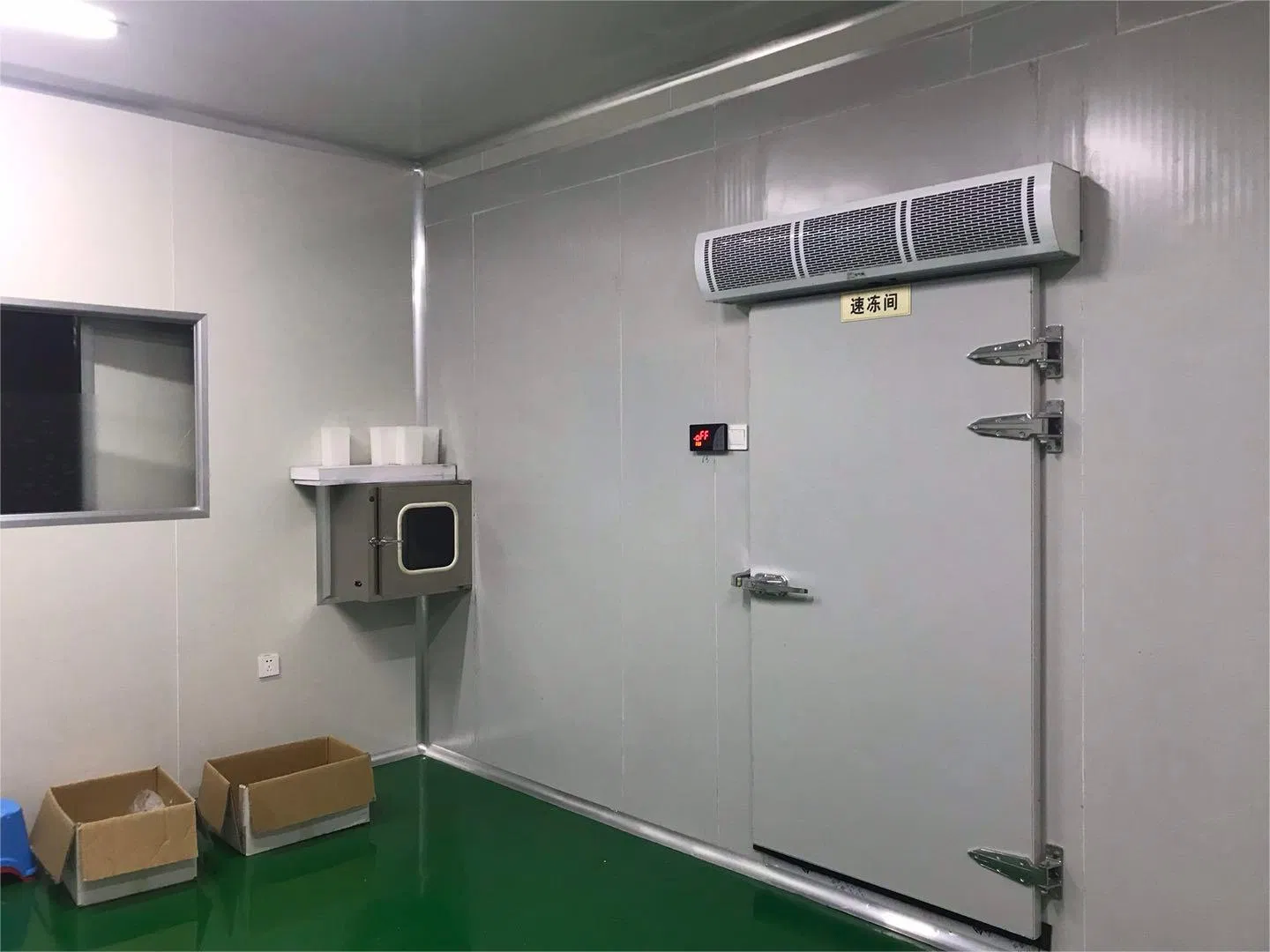

🚪 Cold Storage Door

📍 Type: Semi-buried, Manual/Electric sliding, Sectional
📍 Surface: Color steel or SS
📍 Advantage: Simple structure, perfect sealing

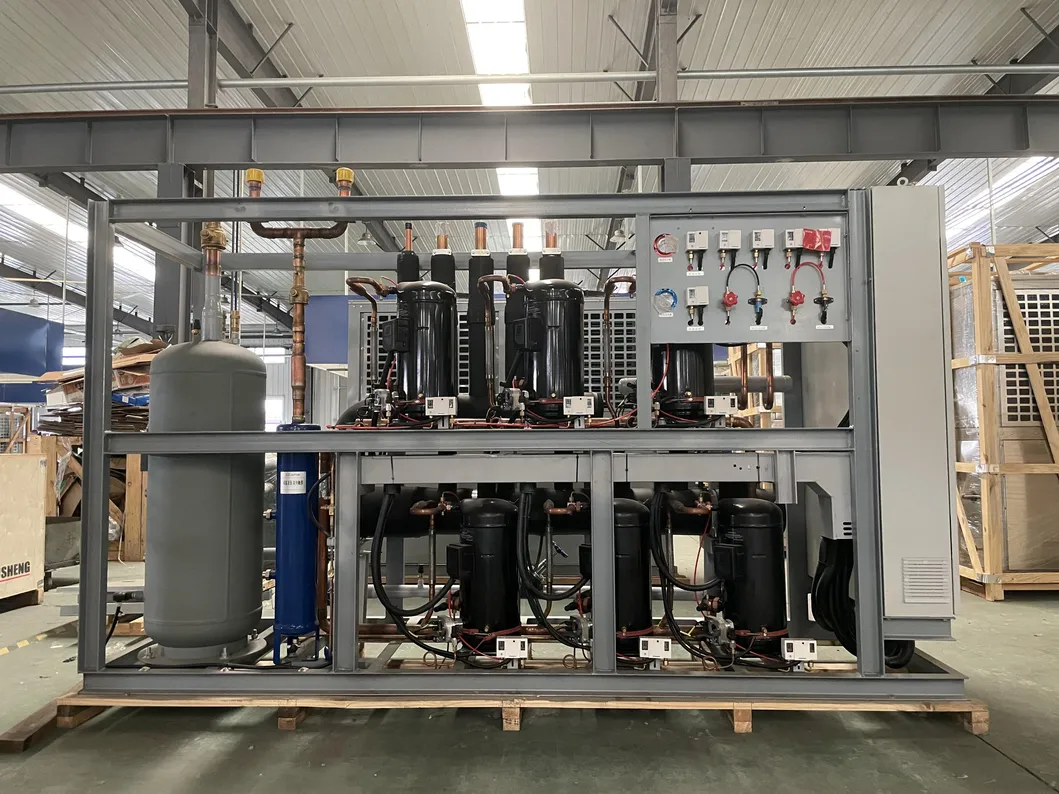

🌀 Compressor Unit

📍 Brands: Bitzer, Emerson, Hanbell, Fusheng
📍 Cooling: Air/Water/Evaporative cooled
📍 Capacity: 2HP - 50HP

📝 Get an Accurate Quotation

Please provide the following details for a precise price:

Cold room size (Length*Width*Height)
Stored products (Quick freeze or storage?)
Required target temperature
Local power supply and refrigerant requirements

❓ Frequently Asked Questions

1. What materials are used for the cold storage panels?

We offer color steel plates, stainless steel plates, and checkered aluminum plates with a high-density PU/PIR core (40±2kg/m³) for optimal insulation.

2. Which compressor brands do you use?

We integrate world-renowned brands including Bitzer, Copeland, Fusheng, and Hanbell to ensure reliability and efficiency.

3. Can the cold storage temperature be customized?

Yes, we provide solutions ranging from keeping-fresh (5ºC to -5ºC) to deep-freezing (-20ºC to -35ºC) and non-standard industrial cooling (down to -60ºC).

4. What is the standard thickness of the panels?

Standard thicknesses include 50mm, 75mm, 100mm, 120mm, 150mm, and 200mm, chosen based on your specific temperature requirements.

5. Do you support different power supplies for international markets?

Yes, our units support various power configurations including 220V/50Hz, 220V/60Hz, 380V/50Hz, and 380V/60Hz.

6. What types of cold room doors are available?

Options include semi-buried doors, manual or electric sliding doors, and sectional doors, all designed for superior heat insulation and sealing.
