📋 Basic Information
Type
Weighing-type Filling Machine
Material Type
Feather & Ball Fiber
Structure
Linear / Multi-Room Feeding
🚀 Key Features
- High efficient & labour saving: 2-3 times faster than manual work, one worker can support 2-3 assembly lines.
- Accurate quantitative precision: Non-contact weighing method, Dynamic weighing error ±0.01g.
- Capable for large and small lattice panels: 0.1-30g capacity.
- Healthy & environment-friendly: Integrated dust-removal system & recycle down function.
- Patented design: Easy for airtight fabrics & special soft fabrics.

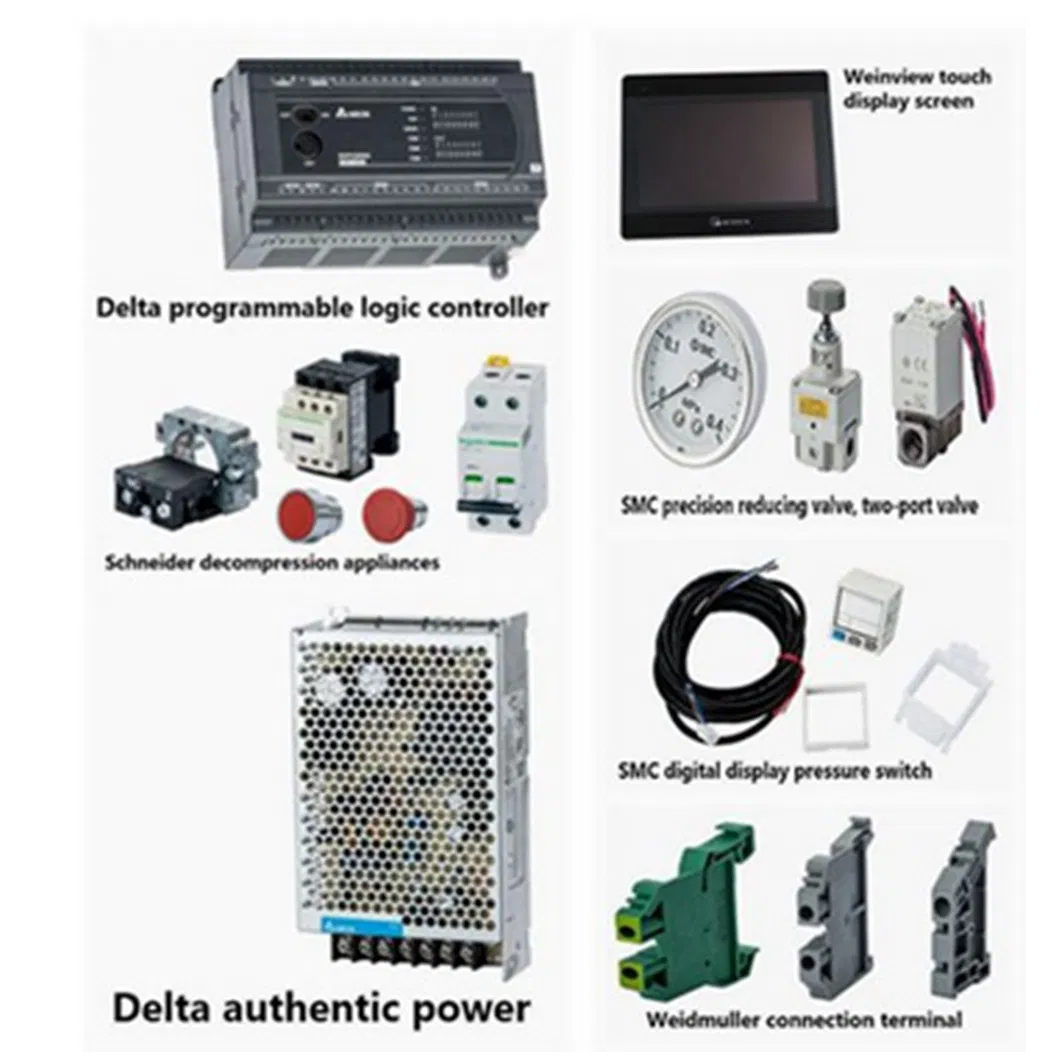

- Friendly touch screen: Real-time data storage, revision, and insight.
- Full Automation: No need for skilled labor, running in high automatization.
⚙️ Technical Specifications

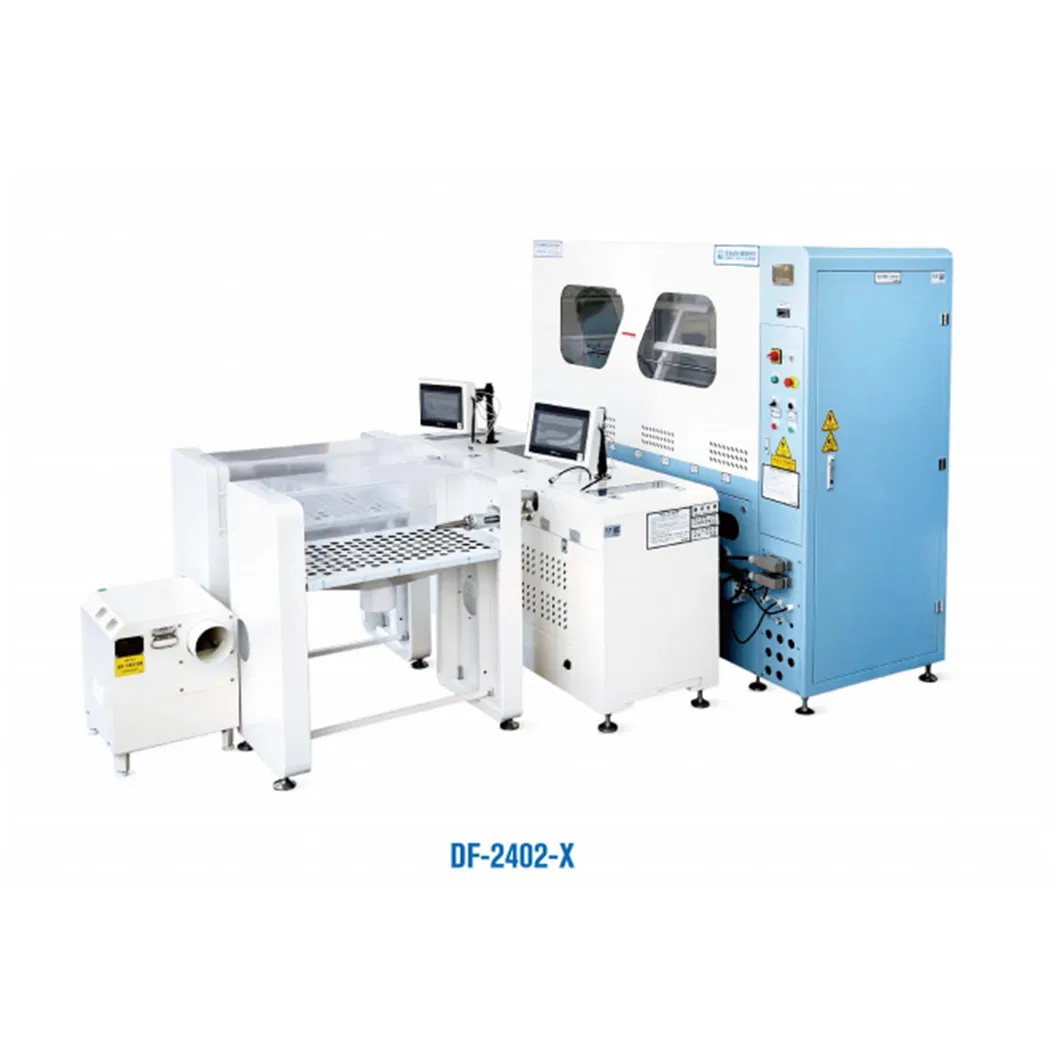

| Production Name | Down feather jacket garment filling machine |
| Item No. | DF-2403X |
| Main Silo Size | 2430*860*2050mm |
| Weighing Silo Size | 1600*580*1060mm |
| Down Material | 90, 80, 70, 60, 50 duck down, goose down |
| Weighing Tolerance | 3% (90 down) |
| Filling Speed | 1g/s-8g/s (adjustable) |
| Filling Weight Range | 0.2-20g |
📝 Product Description
1. Model X series features 2 pipes, with each pipe supported by 4 advanced weighing systems.
2. High accuracy filling with tolerance within 2%, capable of precise measurements like 0.26g, 0.76g, or 3.21g.
3. Wide measurement range from 0.2 to 20 grams, suitable for both separate grids and normal garment grids.
4. Excellent for extra slim chambers, ensuring perfectly even and balanced garment filling.
5. Intelligent Management: Filling data can be synchronously transferred to a computer for remote management and direct output inquiries.
🔄 Production Process
Step 1: Import Materials
Using motor to import down and feather to storage box. Supports duck/goose down, ball fiber, and fake down.
Step 2: Set Target Weight
Configure target weight in the program. Maximum filling capacity reaches 80g per cycle.
Step 3: Start Preparation
Press the "automatic" button to put the machine into ready state.

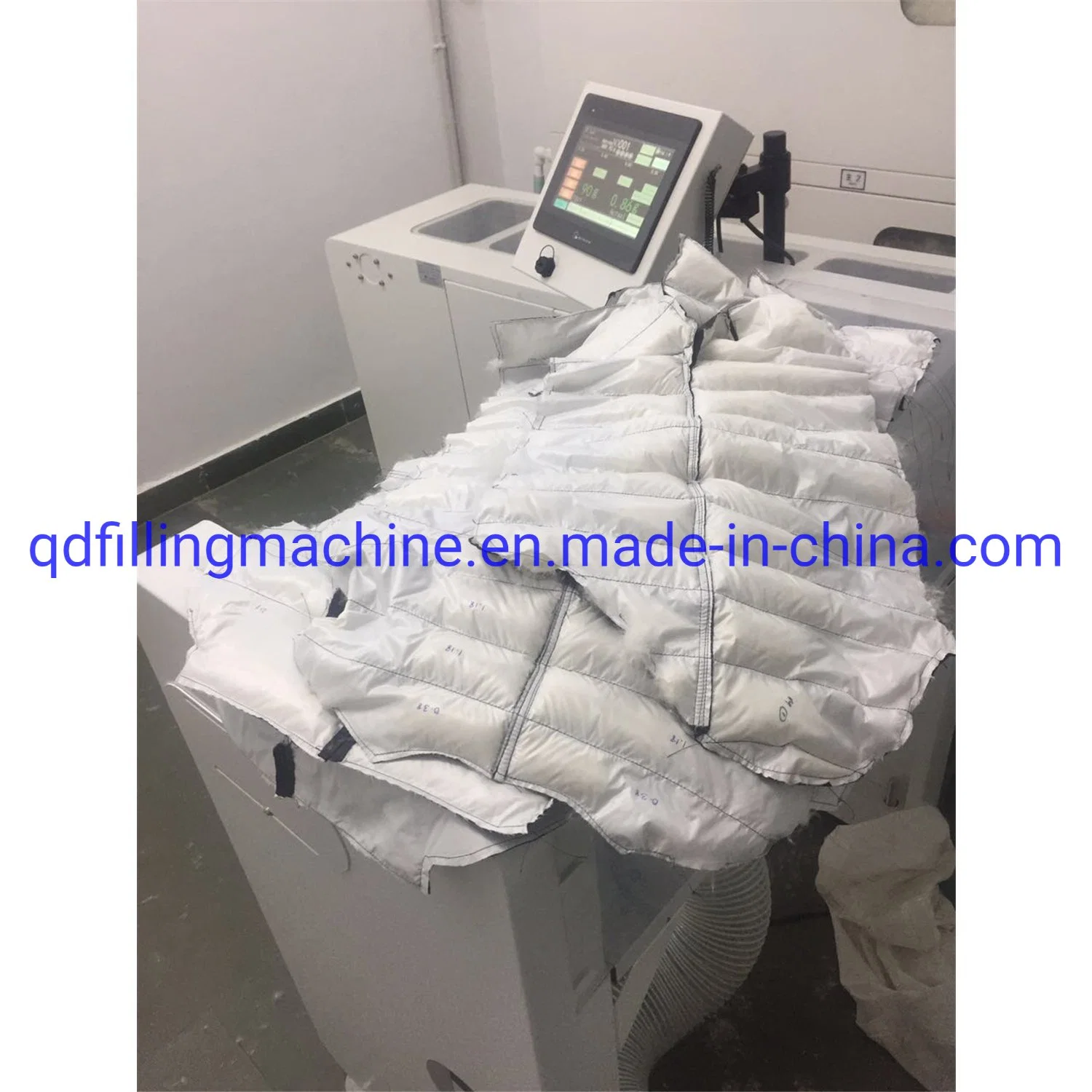

Step 4: Foot Pedal Operation
Hold the fabric to the port and step on the pedal. High speed efficiency: up to 1800 grids per hour per port.
❓ FAQ
Why choose our filling machines?
With over 30 years of industry experience, we specialize in high-precision weighing and filling technology.
What materials can be used with this machine?
It supports various materials including 50%-90% duck/goose down, ball fiber, and milkweed velvet.
What is the weighing accuracy?
The machine uses a non-contact dynamic weighing system with a precision error of ±0.01g to 0.1g.
What is the payment term for orders?
Standard terms are 30% prepayment and 70% paid before shipment after your inspection.
Does the machine require skilled labor?
No, the machine is fully automatic and designed with a friendly touch interface, making it easy for any worker to operate.

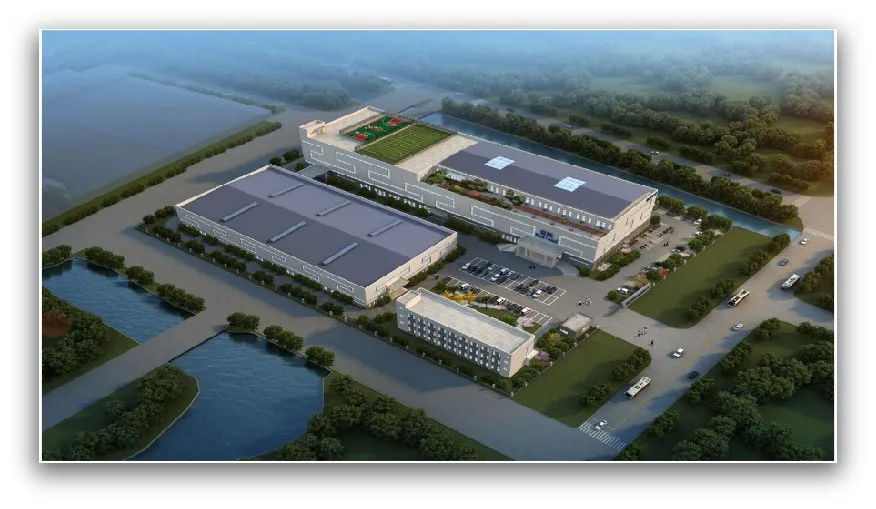

Can I visit the production facility?

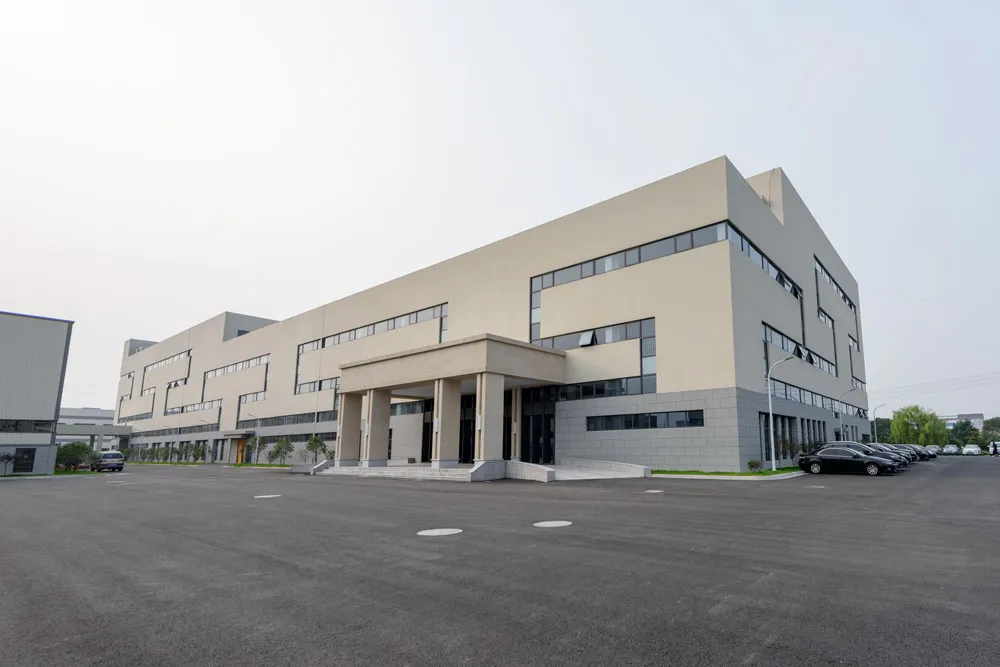

You are welcome to visit our factory at your most convenience to see the machines in action.
